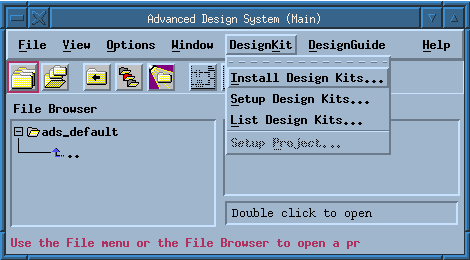

From the ADS main window menu

select DesignKit->Install Design Kits

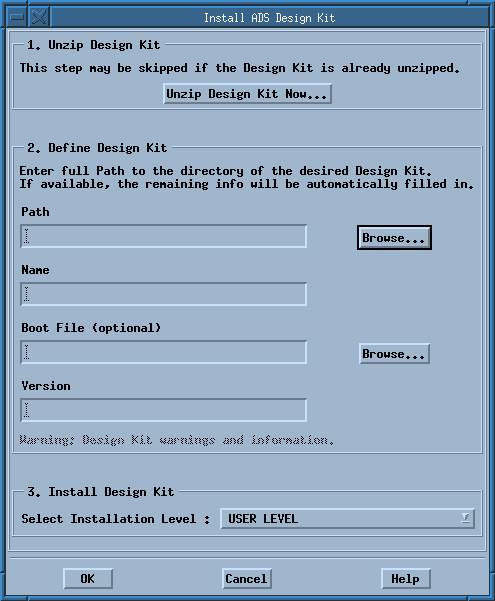

This frame appears.

Please select: Unzip Design Kit Now...

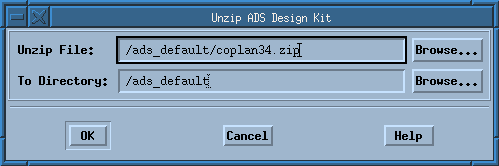

This frame appears.

Please Browse and select the downloaded coplan##.zip file (from above) !

Select a destination directory in which the Coplan files will be stored.
(the Coplan directory (e.g. /ads_default/coplan) will be called COPLAN_DIR in the following slides)

Then press "OK".

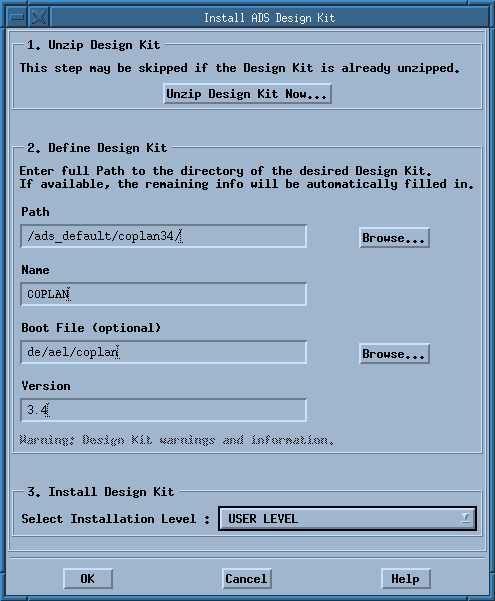

The variables Path, Name, Boot File and Version are filled automatically.

These entries should appear.

You now have to select the installation level!

To continue please follow this link
